Press Brake Back Gauge Modification

Fast & Accurate With Heavy-Duty Construction.RAYMAX offer 2, 4 and 6 axes support brackets to help with all your bending needs-let us help you configure the best solution for your press brake needs.

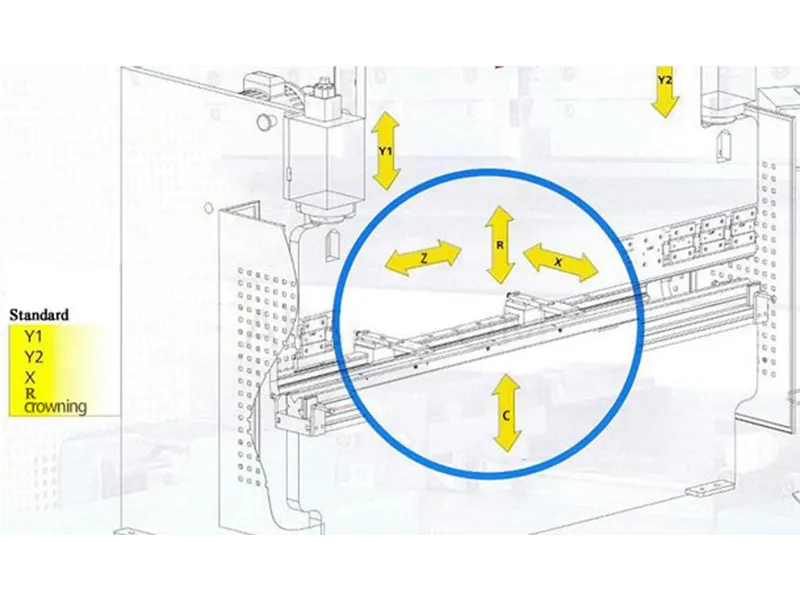

The correct back gauge for the application can have a substantial positive influence on production part volume and accuracy. The more intricate the parts, typically the more axes on the back gauge you should have. Volume of parts needs to be considered also. A smart, experienced brake press operator can bend, form and produce some very intricate parts without even a single axis back gauge However. the more time it takes to form the correct part, the more costs you have in the part. So the correct back gauge for the application will decrease costs per part.

Press Brake 2-Axis CNC BackGauge With X, R-Axis

  • Ball screws and linear guide on X, R-axis
  • Axis X speed 500 mm/s.
  • Manual Z1, Z2-axis with HIWIN linear guide
  • Mechanical accuracy ± 0.03 mm.
  • Fingers with double stop and micrometric adjustment.

Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis

  • Ball screws and linear guide on X, R-axis
  • Precision belts and YYC rack on axes Z1‐Z2.
  • Fingers with double stop and micrometric adjustment.
  • Mechanical accuracy ± 0.03 mm.
  • Axes Z1‐Z2 speed 1000 mm/s.
  • Axis X speed 500 mm/s.

Press Brake 6-Axis CNC BackGauge With X1, X2, R1, R2, Z1, Z2-Axis

  • Ball screws and linear guide on X, R-axis
  • Precision linear guide and YYC rack on axes Z1‐Z2.
  • Fingers with double stop and micrometric adjustment.
  • Mechanical accuracy ± 0.03 mm.
  • Axes R1‐R2 speed 500 mm/s
  • Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
  • Axes Z1‐Z2 speed 1100 mm/s.
