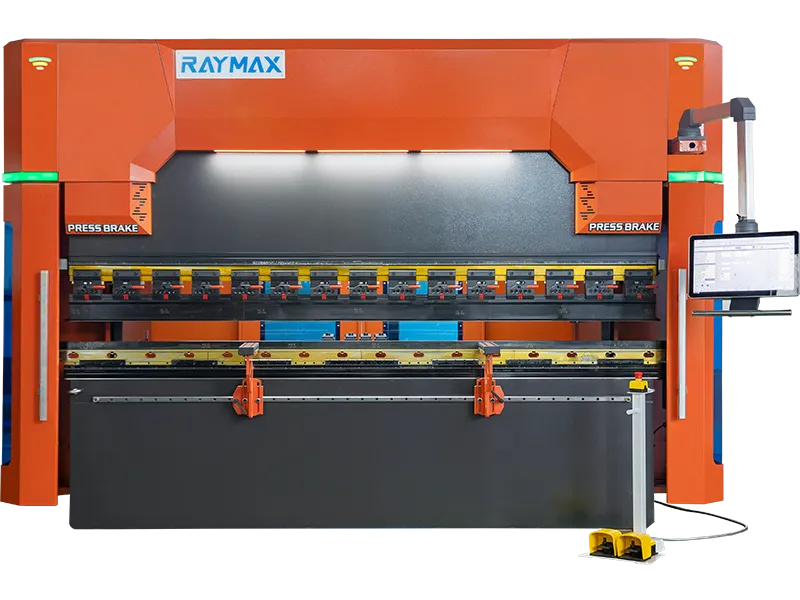

RX-H Series Hybrid Plus CNC Press Brake 8 Axis

RX-H Series Hybrid Plus CNC Press Brake 8 Axis

Category Press Brake

  • The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
  • Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
  • The stroke of cylinder ( Y1,Y2 ) and back gauge ( X, Y, Z ) are computer controlled. The back guage adopt ball screw and rolling guideway, ensuring a high accuracy of repetition.
  • Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
  • The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.

Hybrid Plus CNC Press Brake 8 Axis Technical Parameters

For more detailed parameters, please don’t hesitate to contact us.

Type Nominal pressure (KN) Workbench length (mm) Workbench width (mm) Poles distance (mm) Throat depth (mm) Main motor (kw) Dimensions  L*W*H (mm)
40*1600 400 1600 900 1165 350 5.5 2250*1650*2400
63*2500 630 2500 900 1960 380 5.5 3150*1700*2500
80*2500 800 2500 900 1960 380 7.5 3150*1700*2500
80*3200 800 3200 900 2760 380 7.5 3850*1700*2500
100*3200 1000 3200 950 2750 390 7.5 3900*1800*2650
125*3200 1250 3200 950 2750 390 11 3900*1800*2680
160*3200 1600 3200 1000 2740 400 15 4000*1900*2720
200*3200 2000 3200 1000 2730 400 18.5 4000*1900*2720
300*3200 3000 3200 1330 2720 500 22 4000*2200*3500
100*4000 1000 4000 950 3350 390 7.5 4800*1800*2650
125*4000 1250 4000 950 3350 390 11 4800*1800*2680
160*4000 1600 4000 1000 3340 400 15 4800*1900*2720
200*4000 2000 4000 1000 3330 400 18.5 4800*1900*2800
250*4000 2500 4000 1000 3330 450 18.5 4800*1900*2850

Download

Download RAYMANX product manual right now!
Raymax Product Manual img

Video

Watch video below to learn more details.
Play Video about video bg4

Hybrid Plus CNC Press Brake 8 Axis Introduction to Configuration

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis.

The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading, transient modeling, and a combination of the above, FEA makes sense.

Standard Equipment

CNC Control System

4- CNC Control System

DA-69T Features:

The DELEM DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

4 DA-69T features

BGA-6 BackGauge

BGA-6 BackGauge Features:

Want to get the price of our hybrid plus CNC press brake 8 axis?

Get in touch with our team of experts to receive professional suggestions.

RAYMAX

Products Details

4 Fast Clamping

Fast Clamping

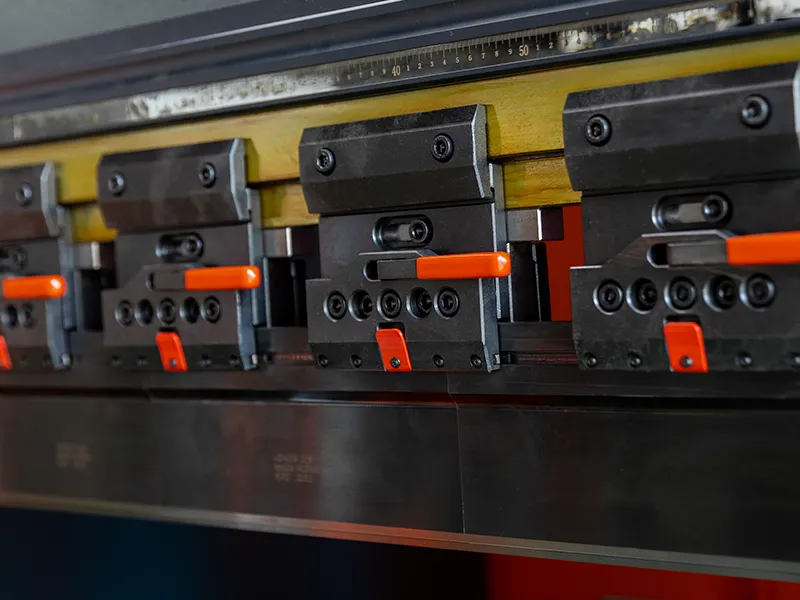

Using mechanical fast clamp for upper dies, changing dies more convenient and safe.

4 Mechanical Compensation Crowning

Mechanical Compensation Crowning

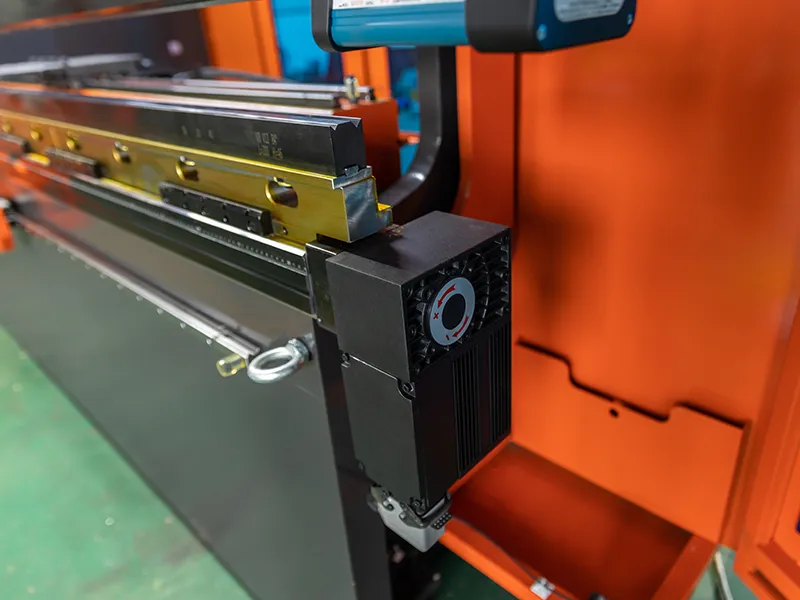

Ensuring good bending strength and precision.

4 Front Plate Support

Front Plate Support

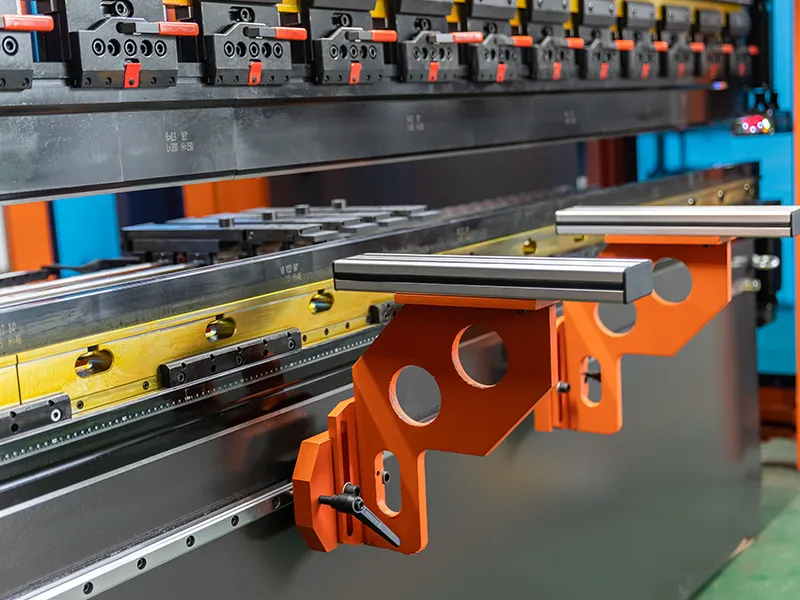

Movable front material support on linear guider can move left and right by hand very easy.

Adjustable Finger Block

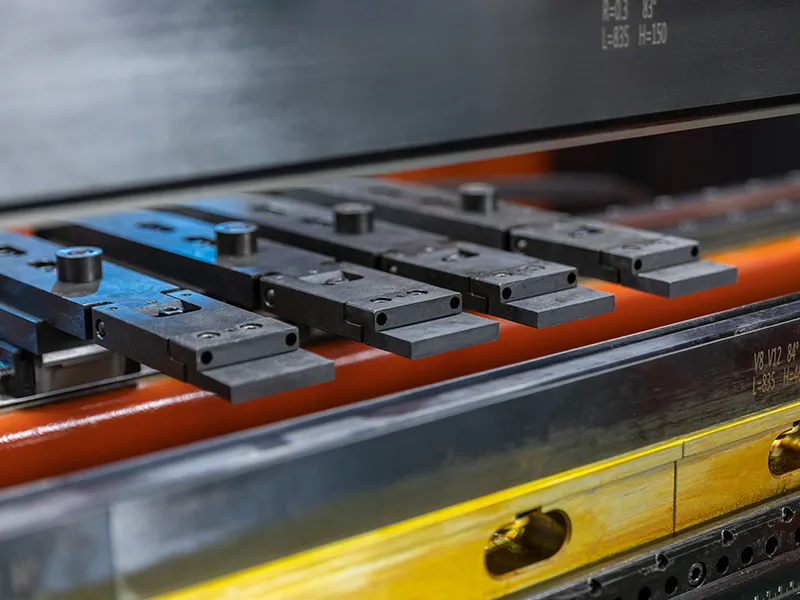

The stop finger can move smoothly on the linear guide and can be adjusted up and down, which is convenient, efficient and easy to control.

4 Hydraulic System

Hydraulic System

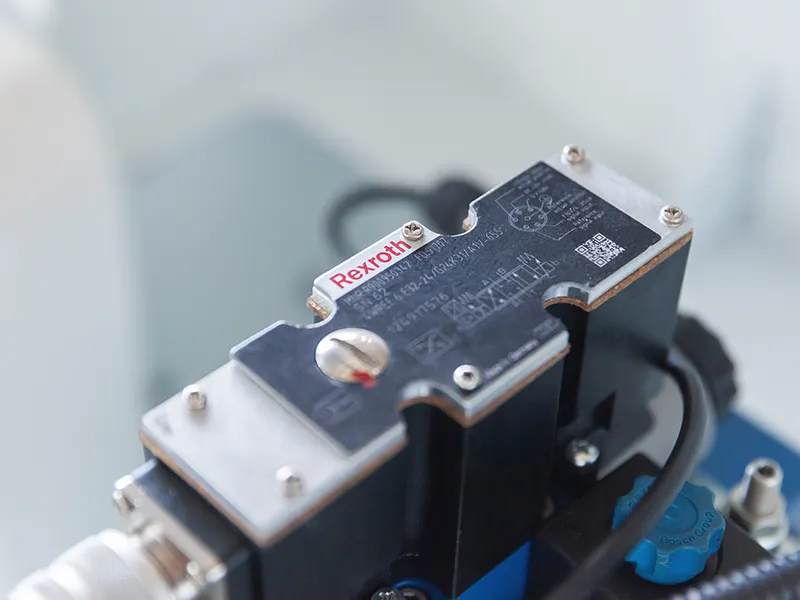

Hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

Die

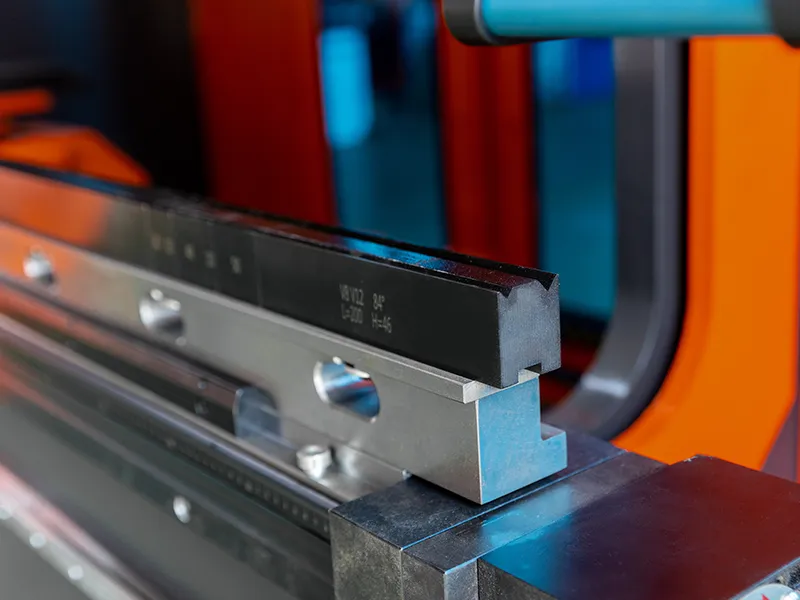

The standard top punch and dual-V bottom die are specially designed for bending sheet metals. More press brake toolings can be selected as per your practical use.

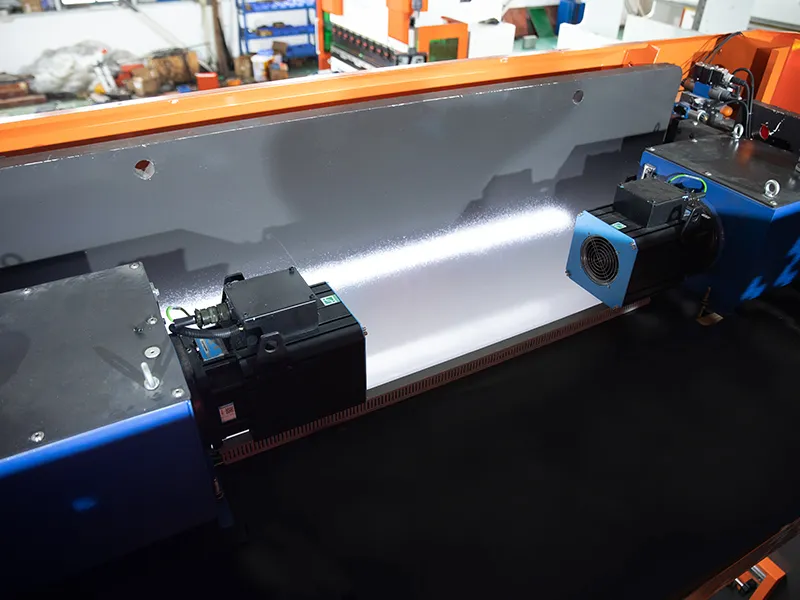

Hybrid Plus

Saving energy
More efficient
Reduce noise
Easier to maintain

4 Foot Pedal Switch

Foot Pedal Switch

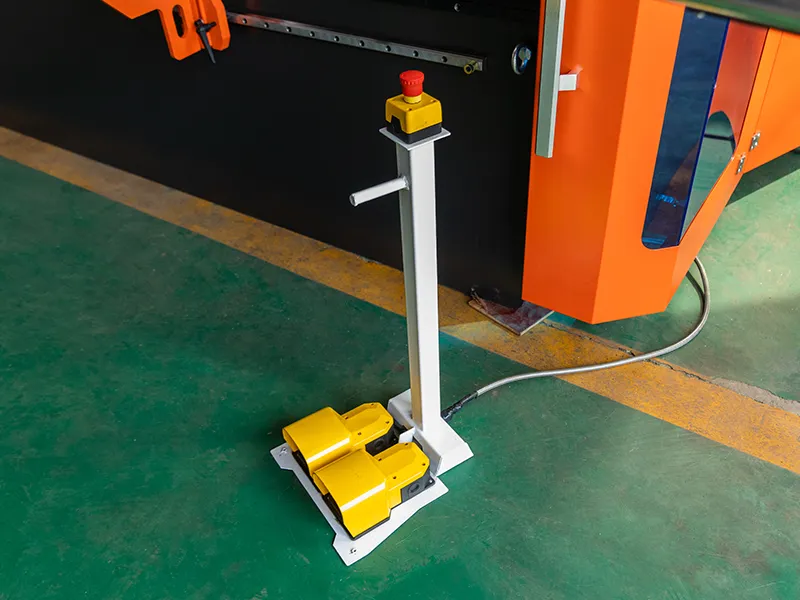

It is movable and can stop the machine anytime by the emergency button.

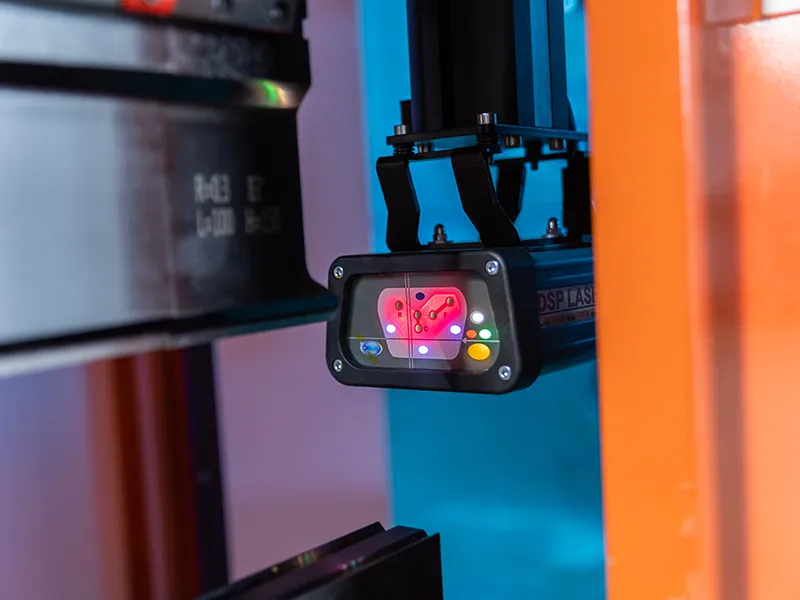

4 DSP Laser Safety Protection

DSP Laser Safety Protection (Optional)

DSP laser safety protection device comprehensively protects the personal safety of bending machine operators and avoids danger due to the rapid movement of the slider on the machine.

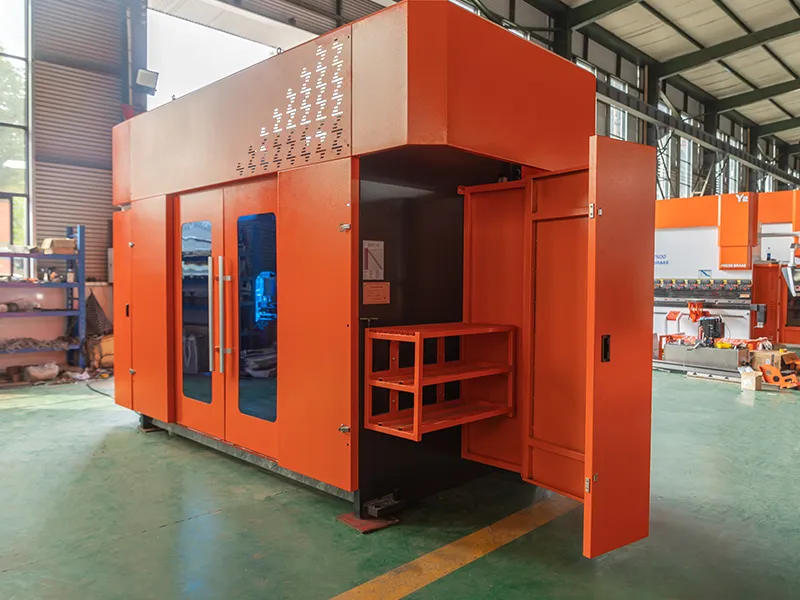

Enclosed Cabinet

Be safer during machine operation.
The tool cabinet on the side can also be used to store various tools.

Want to get the price of our hybrid plus cnc press brake 8 axis?

Get in touch with our team of experts to receive professional suggestions.

Table of Contents

What is the structural principle of hybrid plus CNC press brake 8 axis?

The electro-hydraulic synchronous press brake machine is equipped with a grating ruler on the slider and column. The CNC system can analyze the synchronization situation on both sides of the slider through the feedback information of the grating ruler at any time. If there is an error, the CNC system will adjust it through a proportional electro-hydraulic servo valve to make the stroke on both sides of the slider synchronized. The CNC system, hydraulic control valve group, and grating ruler constitute the feedback closed-loop control of the cnc press brake machine.

What are the advantages of hybrid plus CNC press brake 8 axis?

The machine is controlled by axes X1, X2, Y1, Y2, R, and Z, and can be positioned up, down, left, and right. The rear stopper will retreat or move forward to improve the accuracy of the product. Multi directional precise control of materials can achieve more complex bending shapes and greatly improve processing efficiency and production quality. In addition, the 8-axis control system of the bending machine can also be automatically adjusted according to different materials and bending requirements, providing a more flexible and accurate production plan.

What are the advantages of 8-axis press brake machine?

Firstly, if it is due to external factors, such as heavy objects near the bending machine affecting the uneven force on the sliders on both sides of the working cylinder, we only need to remove the heavy objects and let the sliders of the two working cylinders of the bending machine return to normal movement to solve the problem.

It should be noted that some users often do not pay attention to the cleaning and maintenance of the bending machine when using it, which is incorrect. Before using the bending machine, we need to ensure that there are no foreign objects on the body of the bending machine, and always pay attention to the working condition of the bending machine, which can effectively reduce the uneven pressure on both sides of the bending machine.

What are the reasons for the imbalance between the two sides of 8-axis press brake machine?

Firstly, if it is due to external factors, such as heavy objects near the bending machine affecting the uneven force on the sliders on both sides of the working cylinder, we only need to remove the heavy objects and let the sliders of the two working cylinders of the bending machine return to normal movement to solve the problem.

It should be noted that some users often do not pay attention to the cleaning and maintenance of the bending machine when using it, which is incorrect. Before using the bending machine, we need to ensure that there are no foreign objects on the body of the bending machine, and always pay attention to the working condition of the bending machine, which can effectively reduce the uneven pressure on both sides of the bending machine.

How to choose a model of press brake machine?

  1. The precision requirements of the processed workpiece (nc press brakeprecision deviation).
  2. The daily working hours of the machine (the cnc press brakemachine has high efficiency, which can shorten working hours and reduce labor costs).).
  3. Whether the machine operator is an old employee (nc press brake machine can only be debugged through experience, novice is not easy to operate, while the cnc press brakemachine is a system control, simple and convenient)
  4. Whether the customer has previously purchased a nc press brake, to understand the failure rate of the situation, frequent failures will be a serious delay (cnc press brakefailure rate is extremely low)
  5. CNCpress brakemachine price. According to the purchasing power should also be combined with the actual production capacity and bending accuracy, customers should be considered when buying.
