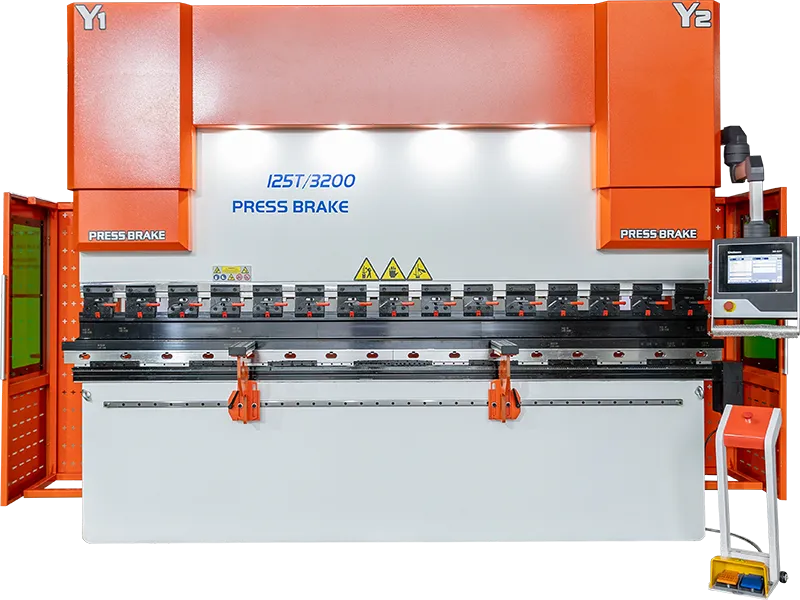

2 RX-S Series CNC Press Brake 3-4 Axis

RX-S Series CNC Press Brake 3-4 Axis

Category Press Brake

  • The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
  • Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
  • Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
  • The stroke of cylinder ( Y1,Y2 ) and back gauge ( X, Y, Z ) are computer controlled. The back guage adopt ball screw and rolling guideway, ensuring a high accuracy of repetition.
  • Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.

CNC Press Brake 3-4 Axis Technical Parameters

For more detailed parameters, please don’t hesitate to contact us.

Type Nominal pressure (KN) Workbench length (mm) Workbench width (mm) Poles distance (mm) Throat depth (mm) Main motor (kw) Dimensions  L*W*H (mm)
40*1600 400 1600 900 1165 350 5.5 2250*1650*2400
63*2500 630 2500 900 1960 380 5.5 3150*1700*2500
80*2500 800 2500 900 1960 380 7.5 3150*1700*2500
80*3200 800 3200 900 2760 380 7.5 3850*1700*2500
100*3200 1000 3200 950 2750 390 7.5 3900*1800*2650
125*3200 1250 3200 950 2750 390 11 3900*1800*2680
160*3200 1600 3200 1000 2740 400 15 4000*1900*2720
200*3200 2000 3200 1000 2730 400 18.5 4000*1900*2720
300*3200 3000 3200 1330 2720 500 22 4000*2200*3500
100*4000 1000 4000 950 3350 390 7.5 4800*1800*2650
125*4000 1250 4000 950 3350 390 11 4800*1800*2680
160*4000 1600 4000 1000 3340 400 15 4800*1900*2720
200*4000 2000 4000 1000 3330 400 18.5 4800*1900*2800
250*4000 2500 4000 1000 3330 450 18.5 4800*1900*2850

Download

Download RAYMANX product manual right now!
Raymax Product Manual img

Video

Watch video below to learn more details.
Play Video about RX-S Series CNC Press Brake 3-4 Axis videobg

Introduction to Configuration of CNC Press Brake 3-4 Axis

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis.

The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading, transient modeling, and a combination of the above, FEA makes sense.

Standard Equipment

CNC Control System

2.CNC Control System

Its 10″ high resolution colour TFT, with industrial grade multi touch screen technology, gives access to the proven Delem user-interface. It enables direct navigation between product programming and actual production. Functions are directly located where needed, offering optimized ergonomics throughout the entire application.

Successfully controlling precision & productivity Nowadays, modern sheet metal production is inconceivable without high performance software. Highly effective control algorithms optimize the machine cycle, reduce the time required for set-up and ensures consistently high quality.

DA-53T Features:

BGA-2 BackGauge

BGA-2 Features:

Want to get the price of our CNC press brake 3-4 axis?

Get in touch with our team of experts to receive professional suggestions.

RAYMAX

Products Details

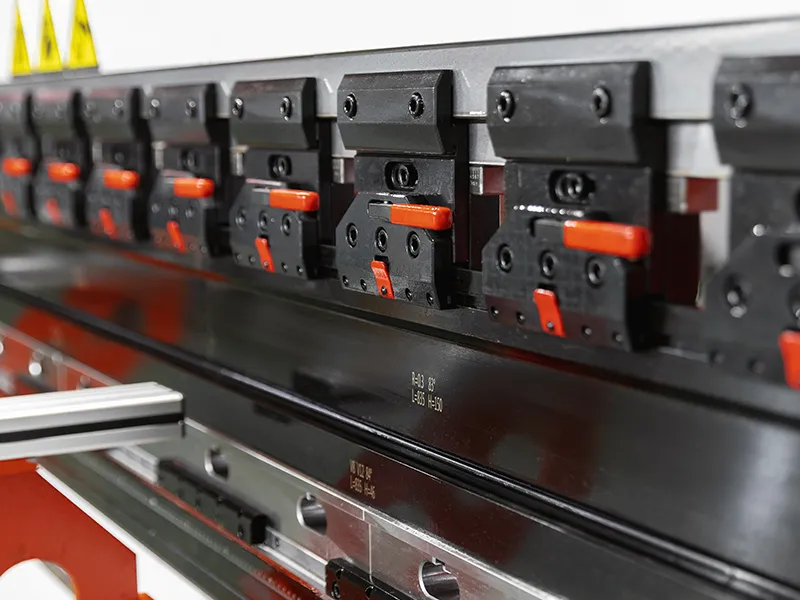

Fast Clamping

Fast Clamping

Using mechanical fast clamp for upper dies, changing dies more convenient and safe.

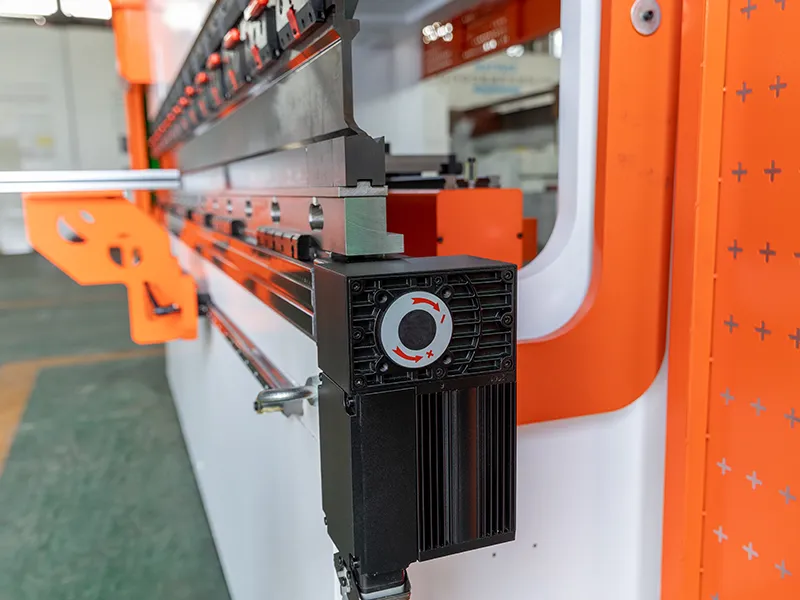

Mechanical Compensation Crowning

Mechanical Compensation Crowning

Ensuring good bending strength and precision.

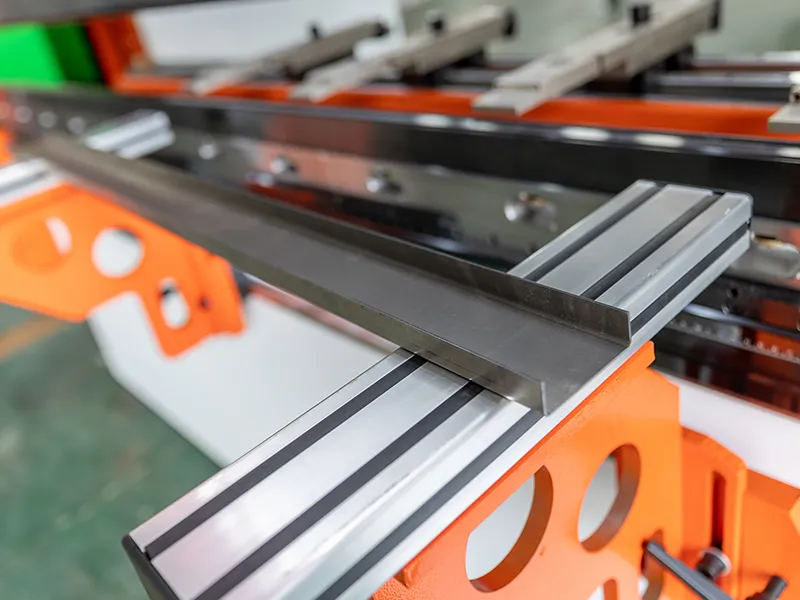

Front Plate Support

Front Plate Support

Movable front material support on linear guider can move left and right by hand very easy.

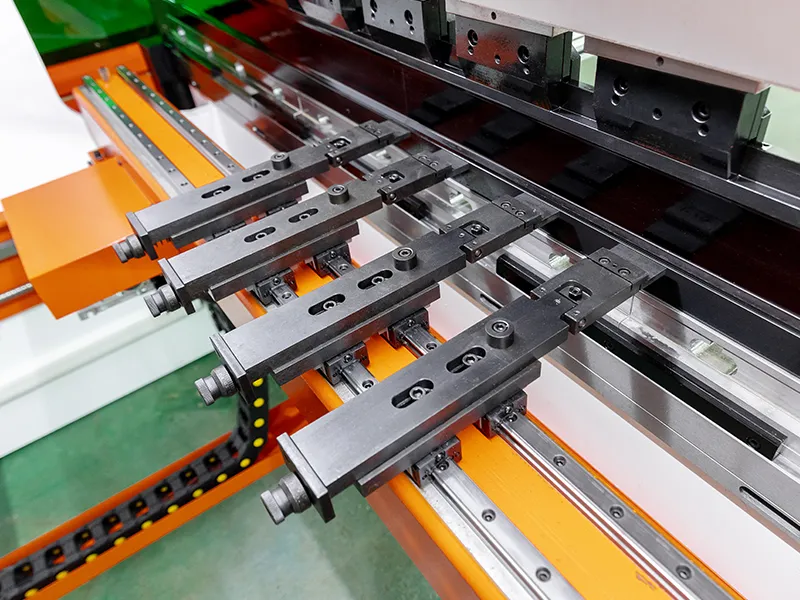

Adjustable Finger Block

Adjustable Finger Block

The stop finger can move smoothly on the linear guide and can be adjusted up and down, which is convenient, efficient and easy to control.

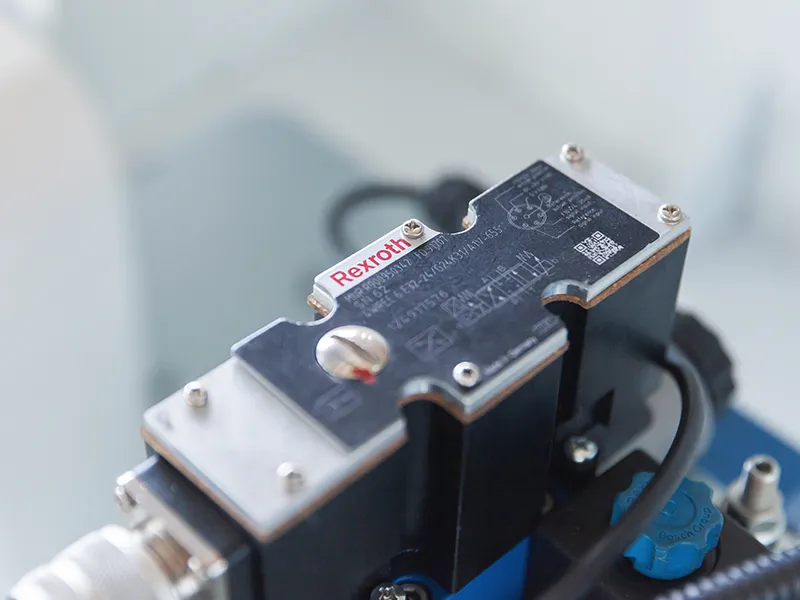

Hydraulic System

Hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

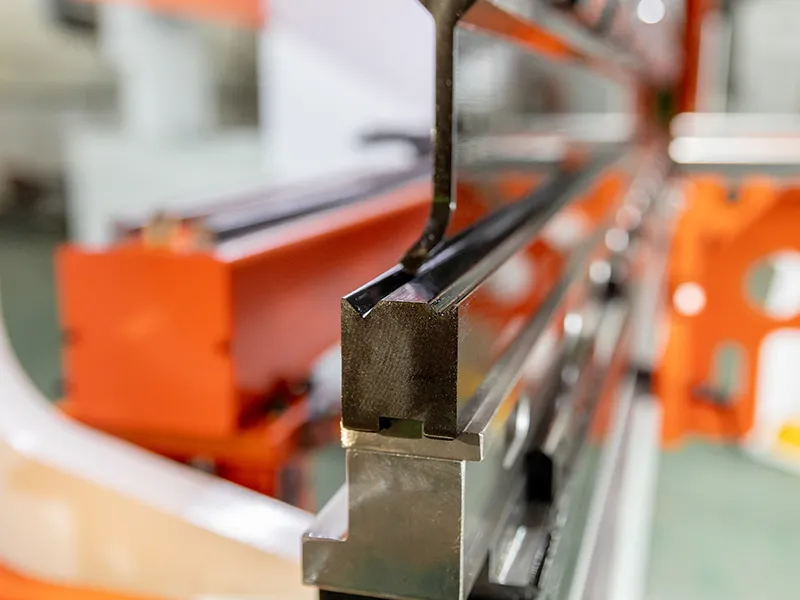

Die

The standard top punch and dual-V bottom die are specially designed for bending sheet metals. More press brake toolings can be selected as per your practical use.

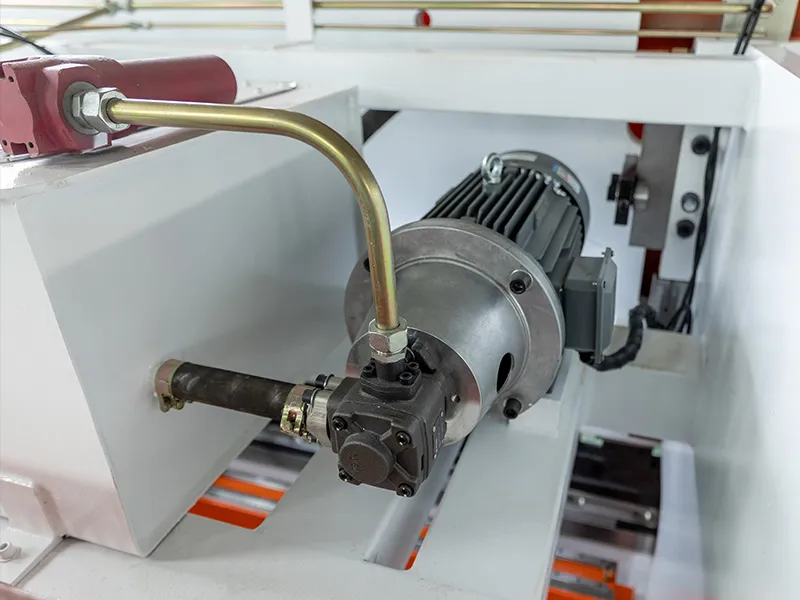

Motor-and-Pump-img

Motor and Pump

Siemens motor guarantee the machine service life.Sunny oil pump with low noise and low sensitivity to oil pollution.

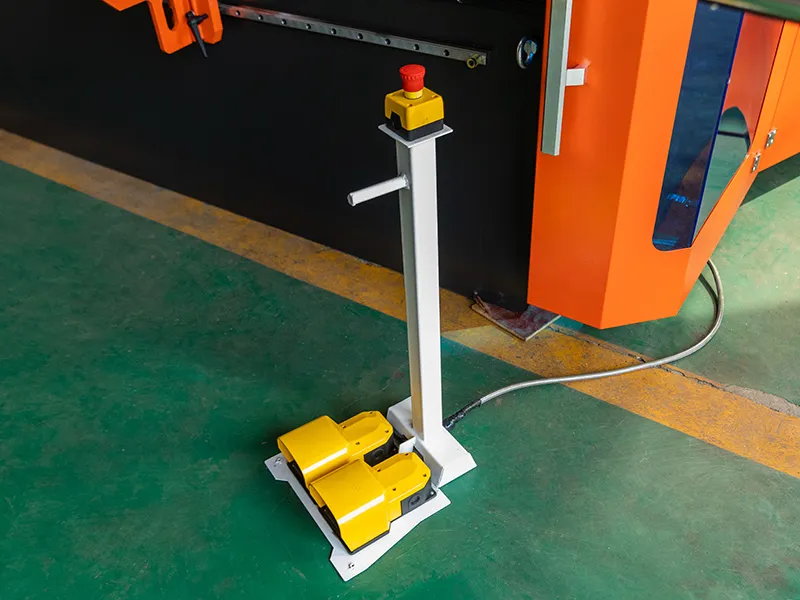

Foot-Pedal-Switch-img

Foot Pedal Switch

It is movable and can stop the machine anytime by the emergency button.

Want to get the price of our CNC press brake 3-4 axis ?

Get in touch with our team of experts to receive professional suggestions.

Table of Contents

What Is CNC press brake 3-4 Axis?

Hydraulic press brakes are a type of press brake that use hydraulic devices for power.

The main components of hydraulic press brakes include the hydraulic device, ram, punch and die, controller, etc.

The hydraulic press brake has two hydraulic cylinders that are driven by the motor to provide the driving force.

Hydraulic press brakes have high speeds, low resistance, high bearing capacity, and large pressure.

They come in various types with different motors and tonnages to handle materials with different characteristics.

Advantages of CNC Press Brake 3-4 Axis

2 RX-S Series CNC Press Brake 3-4 Axis

The CNC press brake, or computer numerical control press brake, is used for bending metal sheets.

Compared to the NC press brake, the CNC press brake has a more advanced CNC system that results in higher bending speed, precision, and automation.

The CNC press brake’s more advanced controller allows for more accurate bending, with the ability to achieve precise bending speed, angle, and a final accurate workpiece.

This improved accuracy and quality of the workpiece help to reduce production costs.

The CNC press brake is also capable of producing workpieces with more complex shapes, thanks to its advanced CNC controller that can be programmed through complex algorithms.

This allows for greater control of the bending accuracy of the die, which is useful when processing workpieces with complex shapes and angles.

Applications of CNC Press Brake 3-4 Axis

Sheet Metal Bending

One of the primary applications of these advanced press brakes is in sheet metal bending. The multi-axis movement enables the creation of intricate shapes and forms with unparalleled precision.

Precision Forming

Industries requiring precise forming, such as aerospace and automotive, benefit significantly from the capabilities of 3-4 Axis CNC press brakes. The ability to control the bending process in multiple directions ensures the desired outcomes.

Versatility in Manufacturing

These press brakes find applications in a wide range of manufacturing processes, providing versatility to adapt to various industry requirements.

Choosing the Right CNC Press Brake

Factors to Consider

Selecting the right CNC press brake involves considering factors such as the type of materials to be processed, the complexity of bending tasks, and the required level of automation.

Customization Options

Many manufacturers offer customization options, allowing businesses to tailor the press brake to their specific needs. Understanding the customization possibilities is crucial for optimal machine performance.

Request A Quote
